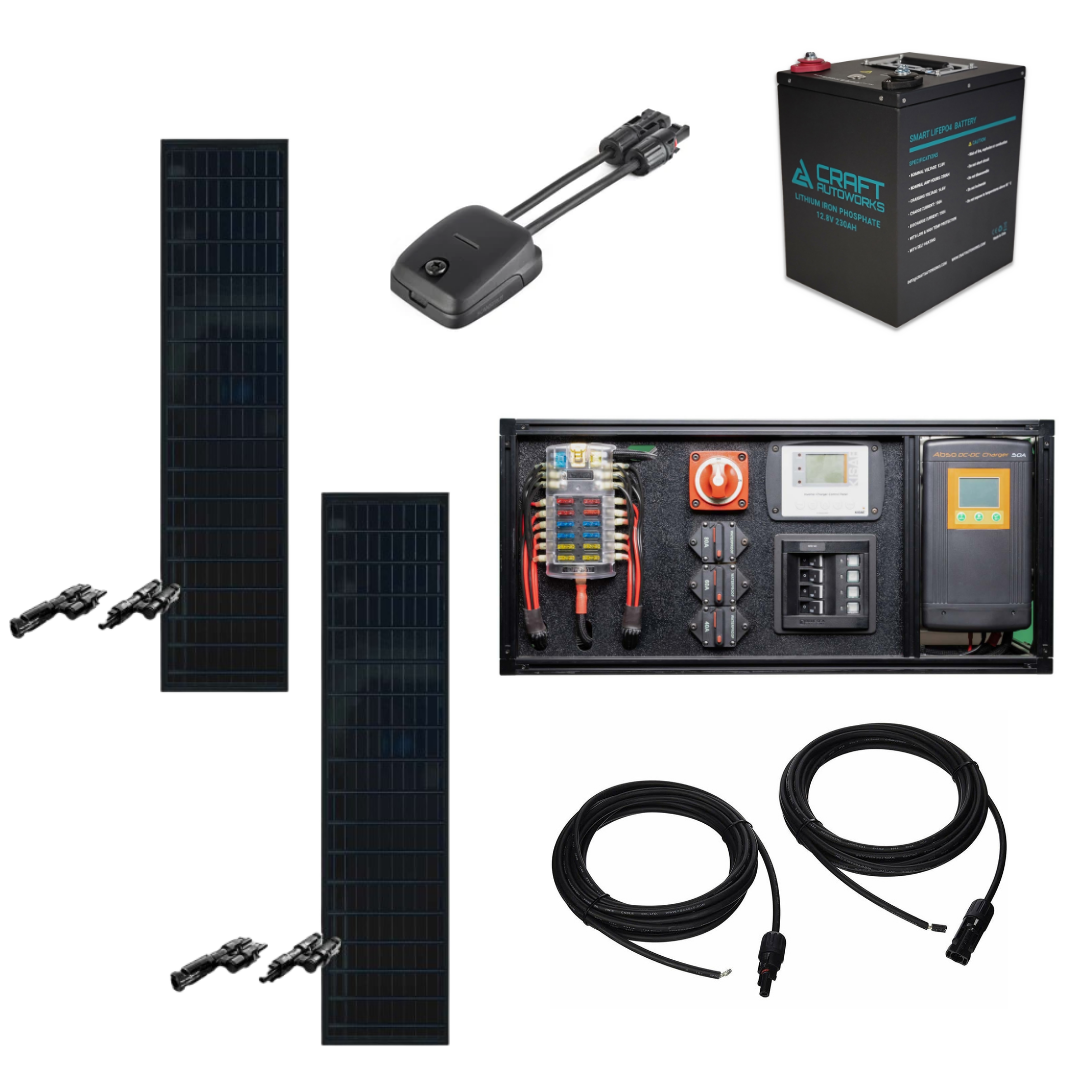

Campervan Plug & Play Electrical + Solar Bundle

Take the guesswork out of building your power system. Our Electrical + Solar Bundle combines a bench-built, prewired electrical system with the solar you need to keep it charged, delivering true plug-and-play convenience for campervans, RVs, overlanding rigs, or remote cabins.

At the heart of the bundle is your prewired electrical system:

• Professionally bench-built and tested before it leaves the shop
• Designed for quick installation—just mount, connect, and you’re powered up
• Clean, organized wiring that eliminates hours of DIY trial and error

Our slim solar solution keeps your batteries topped up wherever you roam:

• Slim rooftop solar panels for optimal fitment and consistent power on long trips
• 12AWG wire for quick and covenient connections
• Scantstrut cable entry gland for a clean, weather-proof, and professional-grade seal

Scalable options to grow with your energy demands

By bundling, you get more than just parts—you get a complete, ready-to-use system that saves time, reduces installation costs, and ensures reliable off-grid performance.

Why choose this bundle?

• Plug & Play Convenience – Prewired means less time installing, more time enjoying.
• Future-Proof Design – Expand your solar capacity or battery bank as your needs grow.
• Proven Reliability – Every system is tested and built for the demands of off-grid life.

Whether you’re running an air conditioner, powering tools, charging devices, or keeping your fridge cold, the Prewired Electrical + Solar Bundle is the fastest, most reliable path to dependable off-grid power.

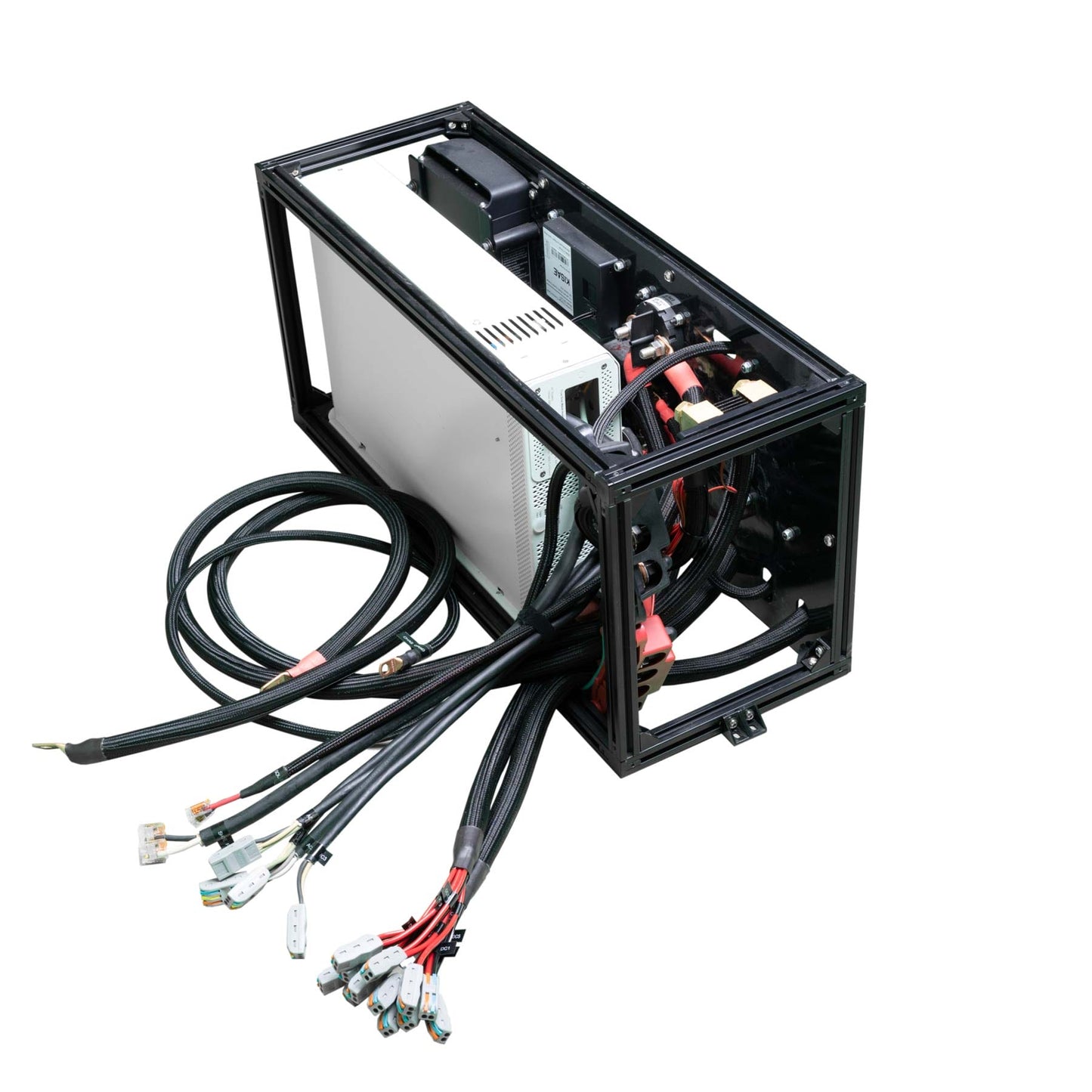

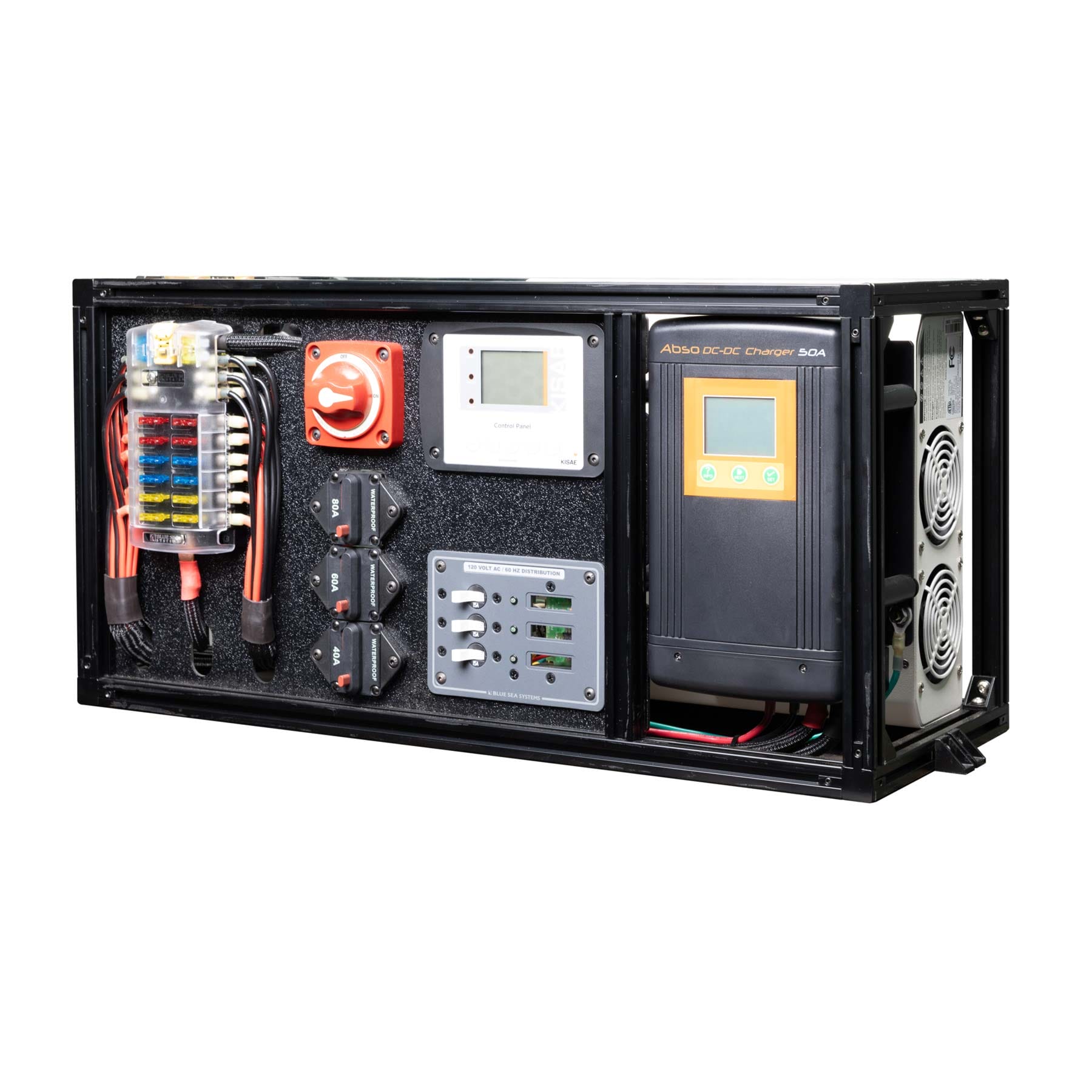

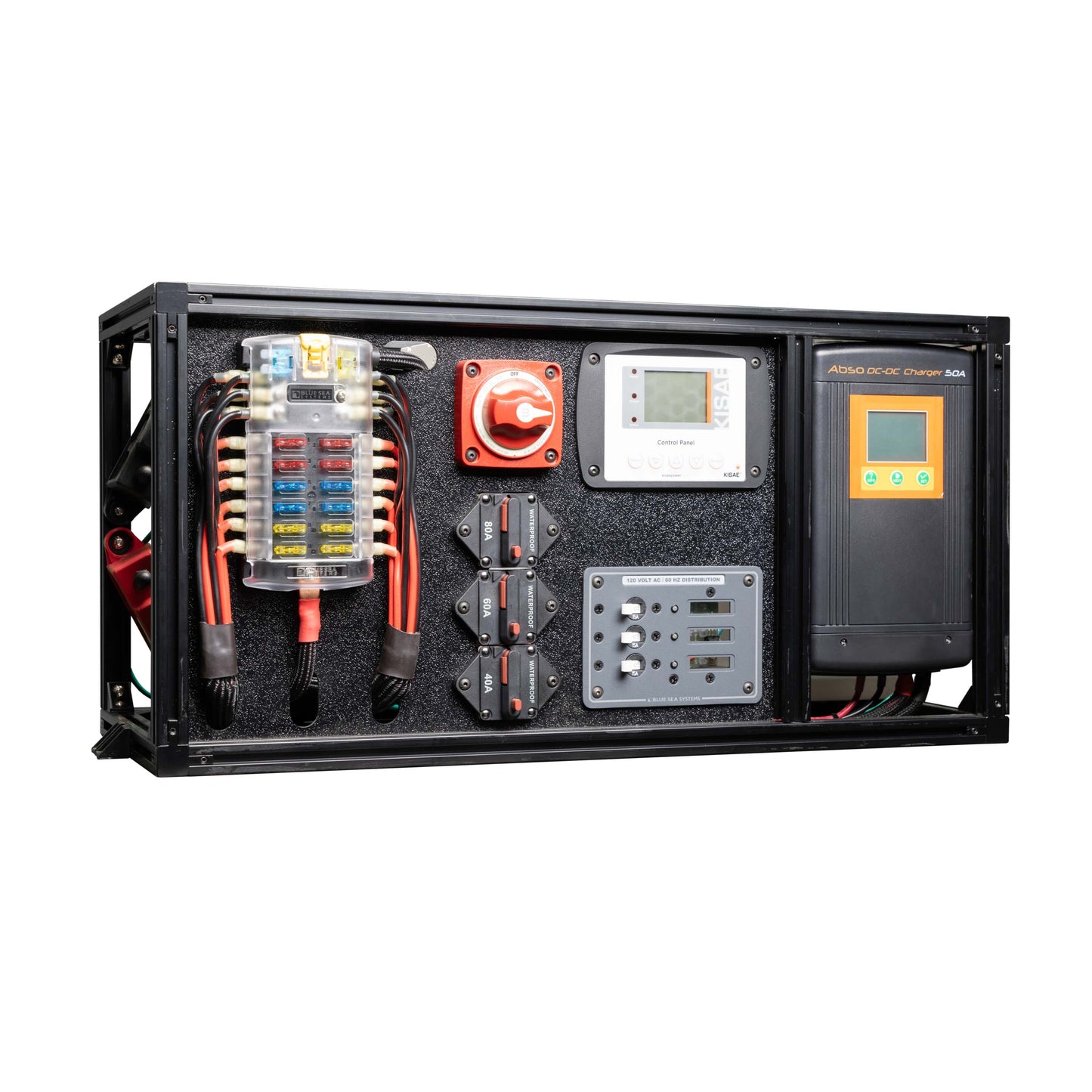

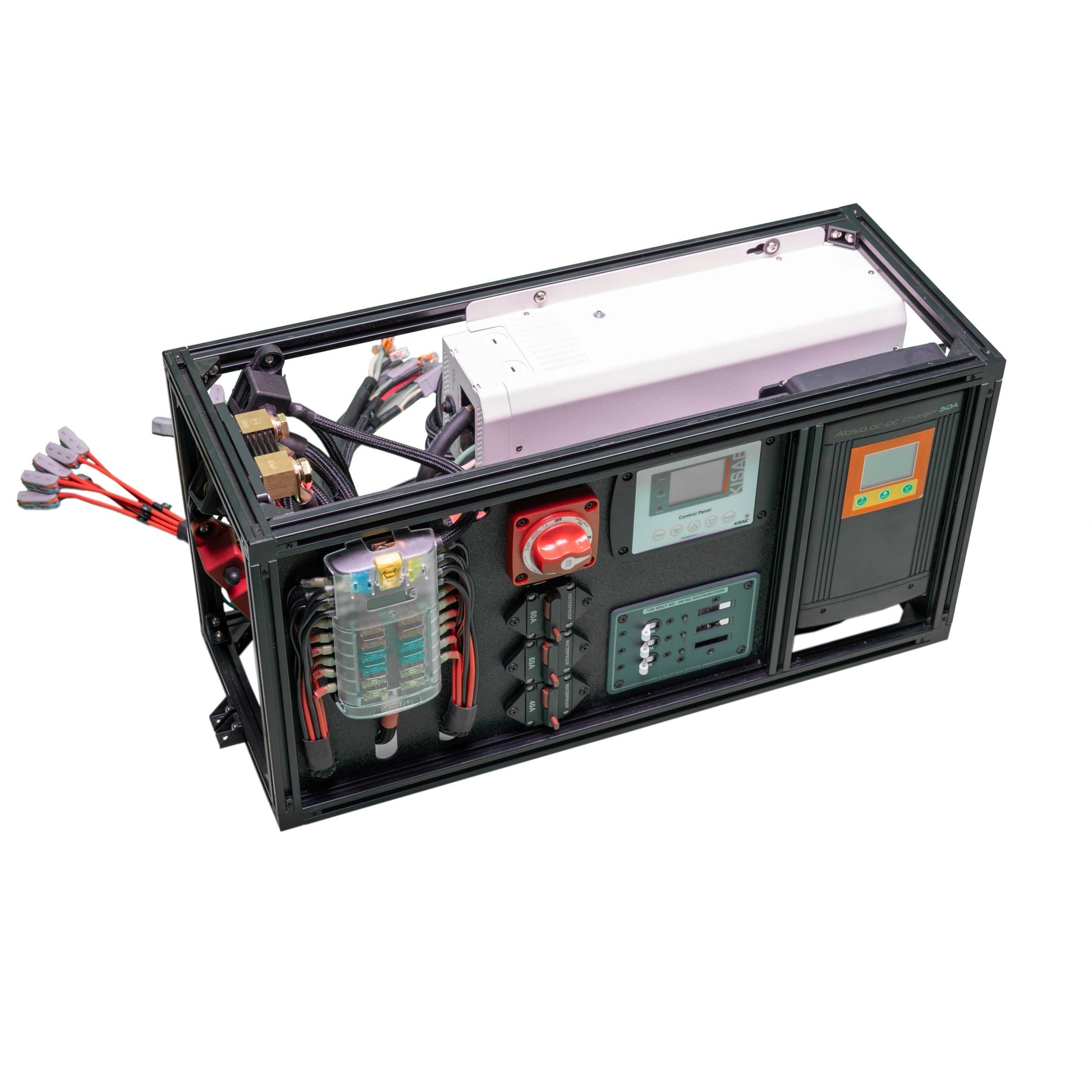

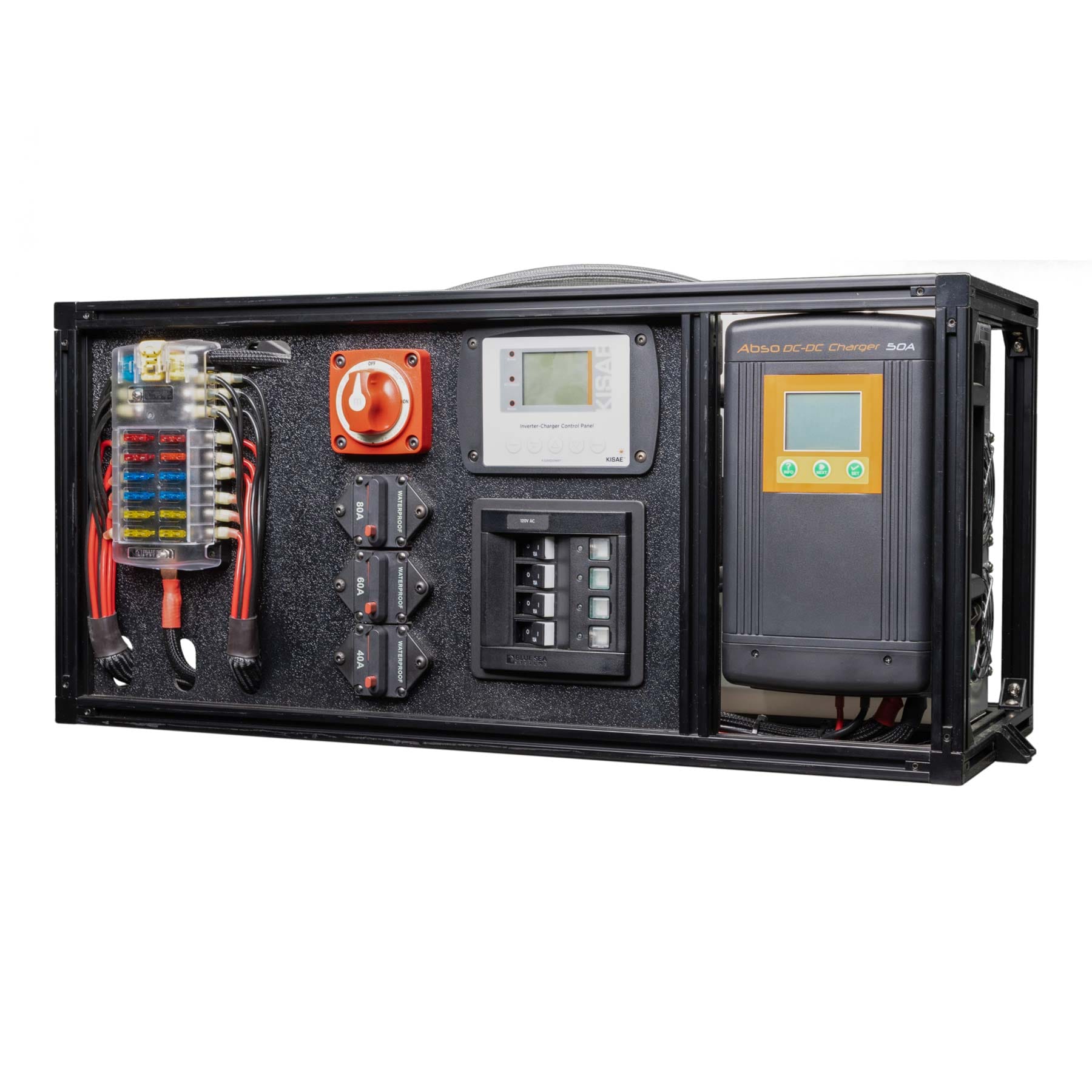

Bench-Built Electrical System

Plug-and-Play Van Electrical Systems – Prebuilt & Ready to Install

Building a reliable electrical system is often the most challenging part of any van or overland rig conversion. That’s why we’ve taken the guesswork out of it. These are the same professional-grade systems used in high-end builds—now available to DIY builders looking for premium performance without the hassle.

Each unit is pre-assembled, thoroughly tested, and fully connectorized for fast, straightforward installation. Whether you’re powering appliances, tools, or off-grid adventures, this all-in-one system delivers dependable power with charging capabilities from shore, solar, and alternator sources.

What’s Included:

• Kisae Inverter/Charger – For clean AC power and smart shore charging

• Kisae 50A DC-DC and MPPT charger combo for alternator and solar input

• Victron BMV-712 – High-precision battery monitor with Bluetooth connectivity

• Blue Sea Systems – Breaker panel, fuse block, and battery master switch

• Custom Aluminum Frame – Durable construction with a clean ABS faceplate

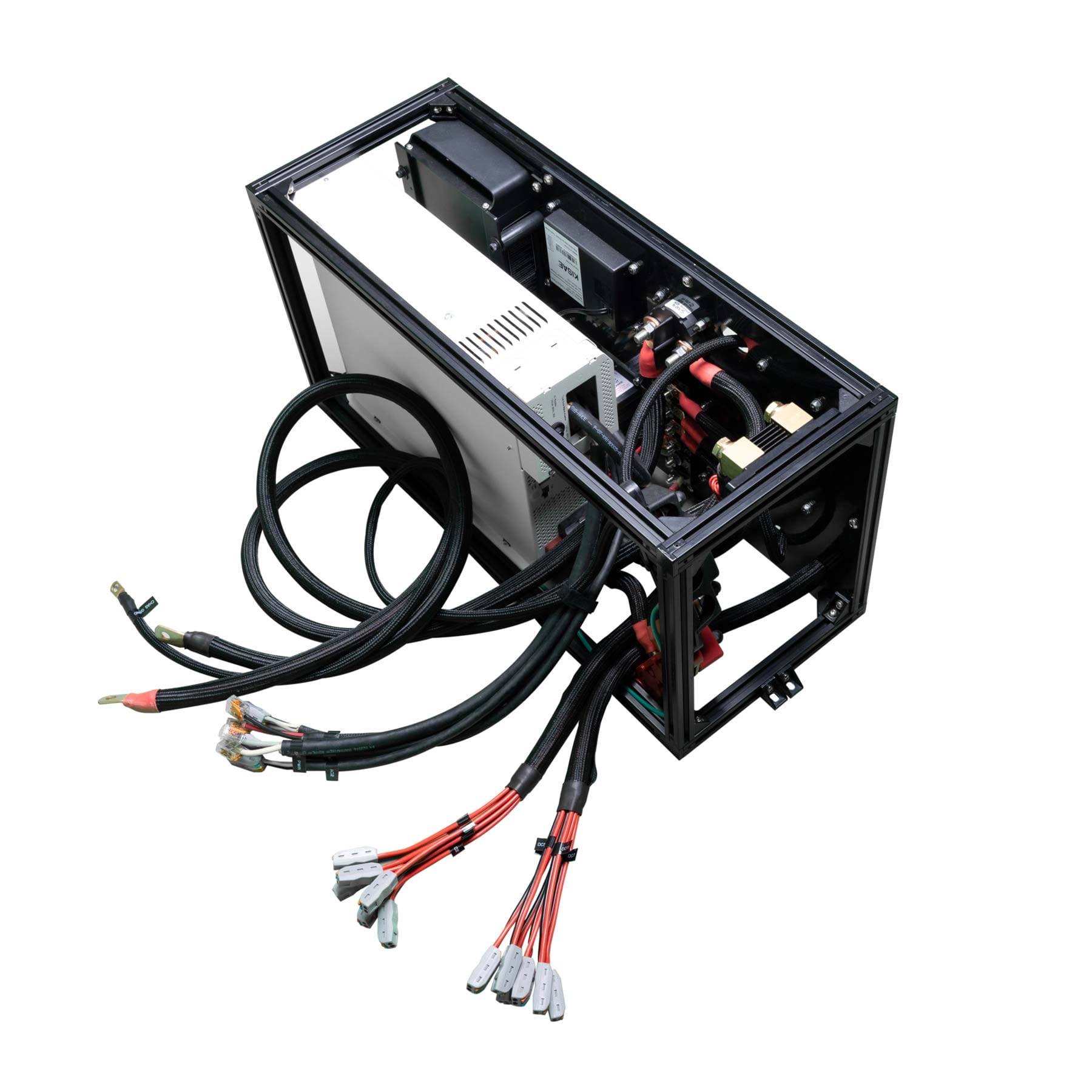

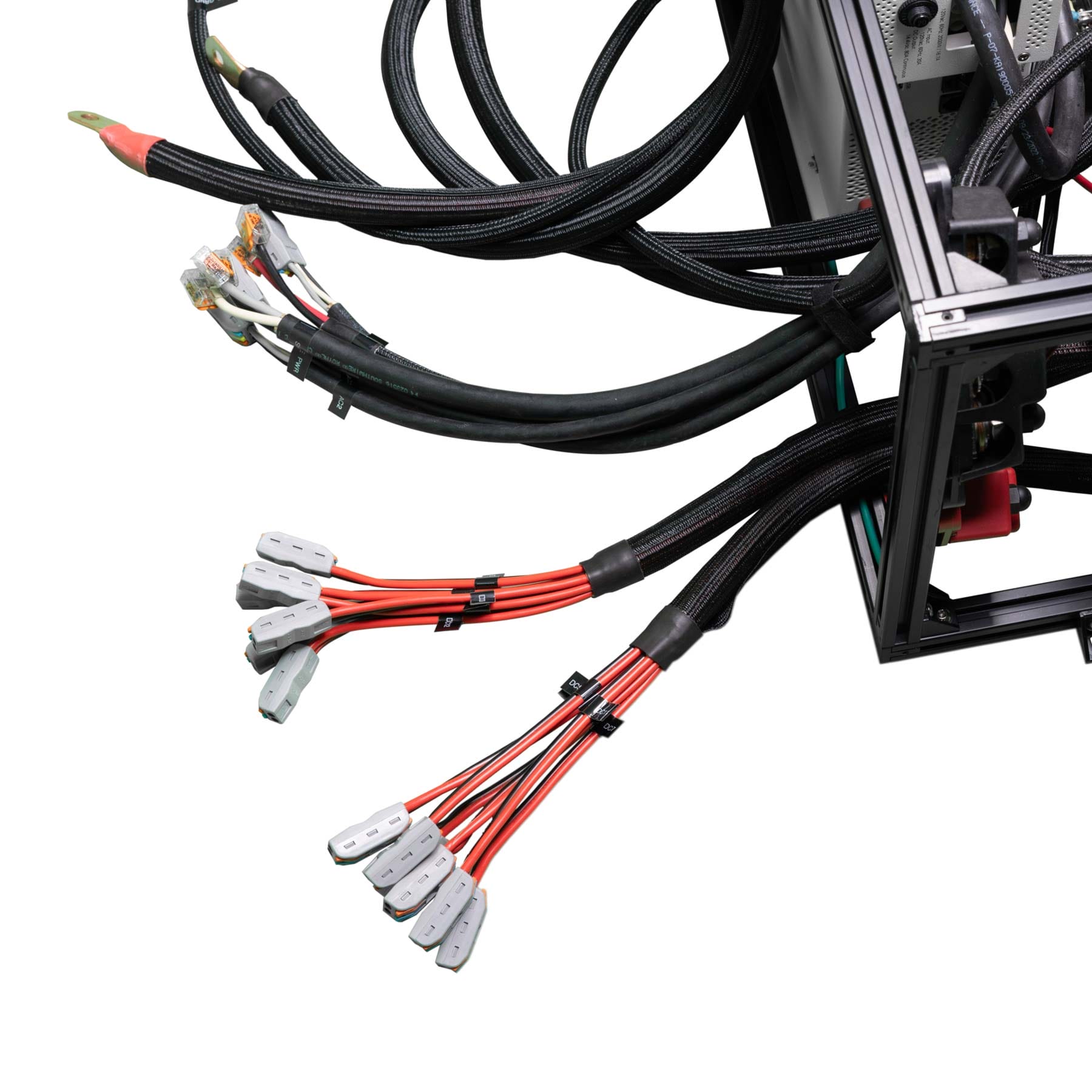

• Fully Connectorized Wiring – Plug-and-play ready for streamlined installation

Input Capabilities:

• Shore Power: Up to 30A, 120VAC

• Solar Input: Up to 750W, 48VDC max

• Alternator Charging: Up to 50A, 12–14VDC

Output Options:

• DC Power: Twelve 12VDC circuits (20A max each) via Blue Sea fuse panel

• AC Power:

• Three 120VAC circuits (15A each) powered by a 2000W inverteror

• Four 120VAC circuits (15A each) powered by a 3000W inverter

3000 WATT SYSTEM

• 26” Long x 12” Tall x 10” Deep

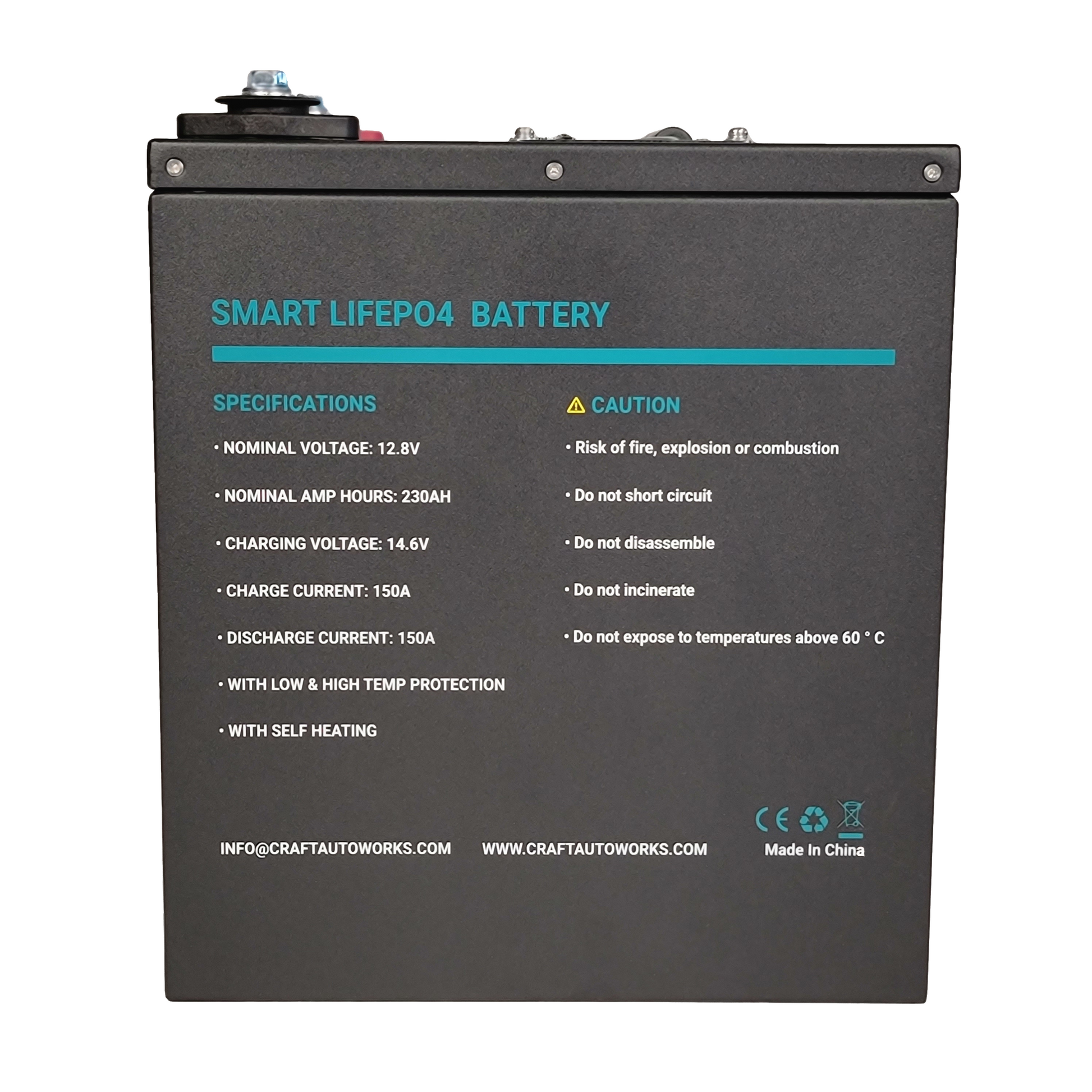

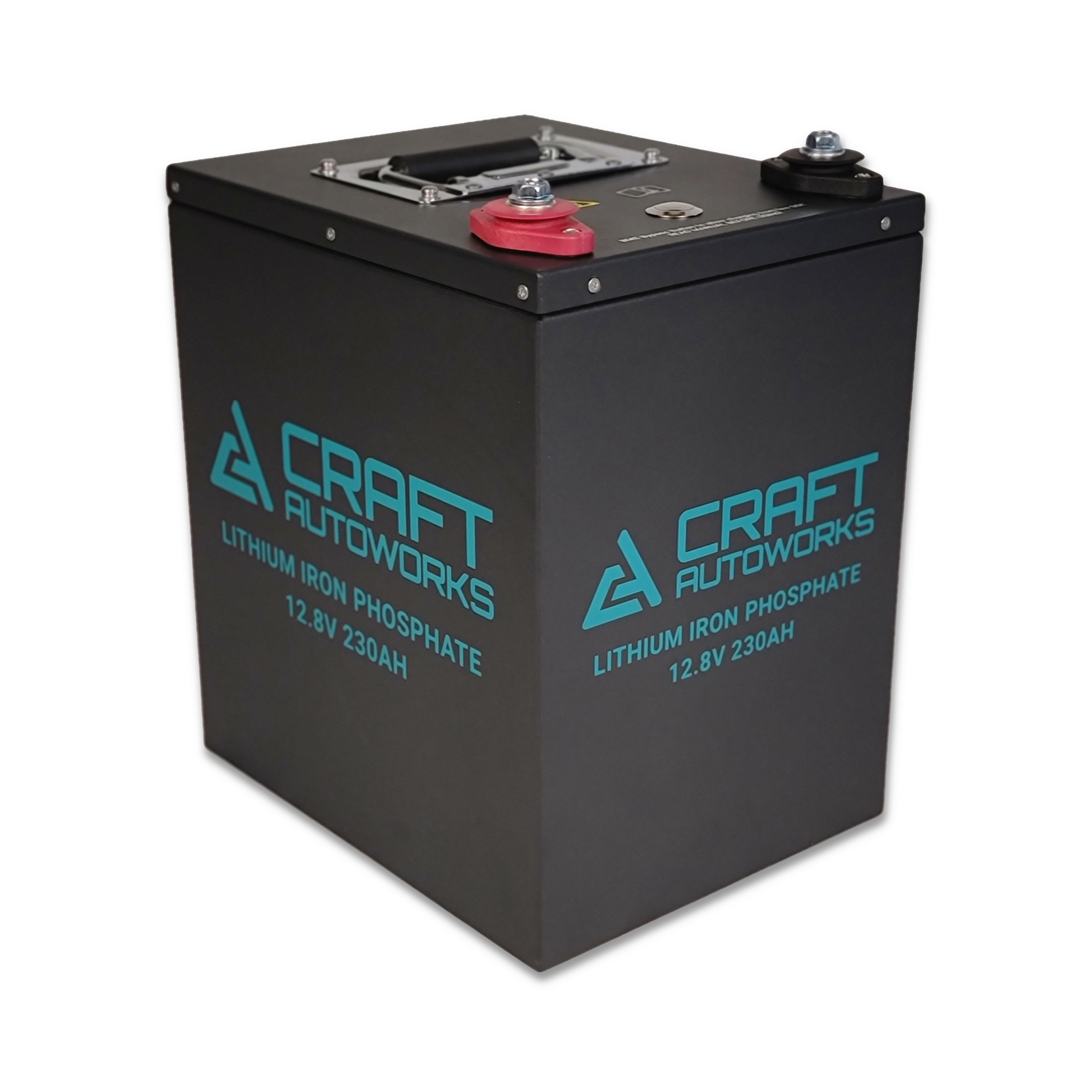

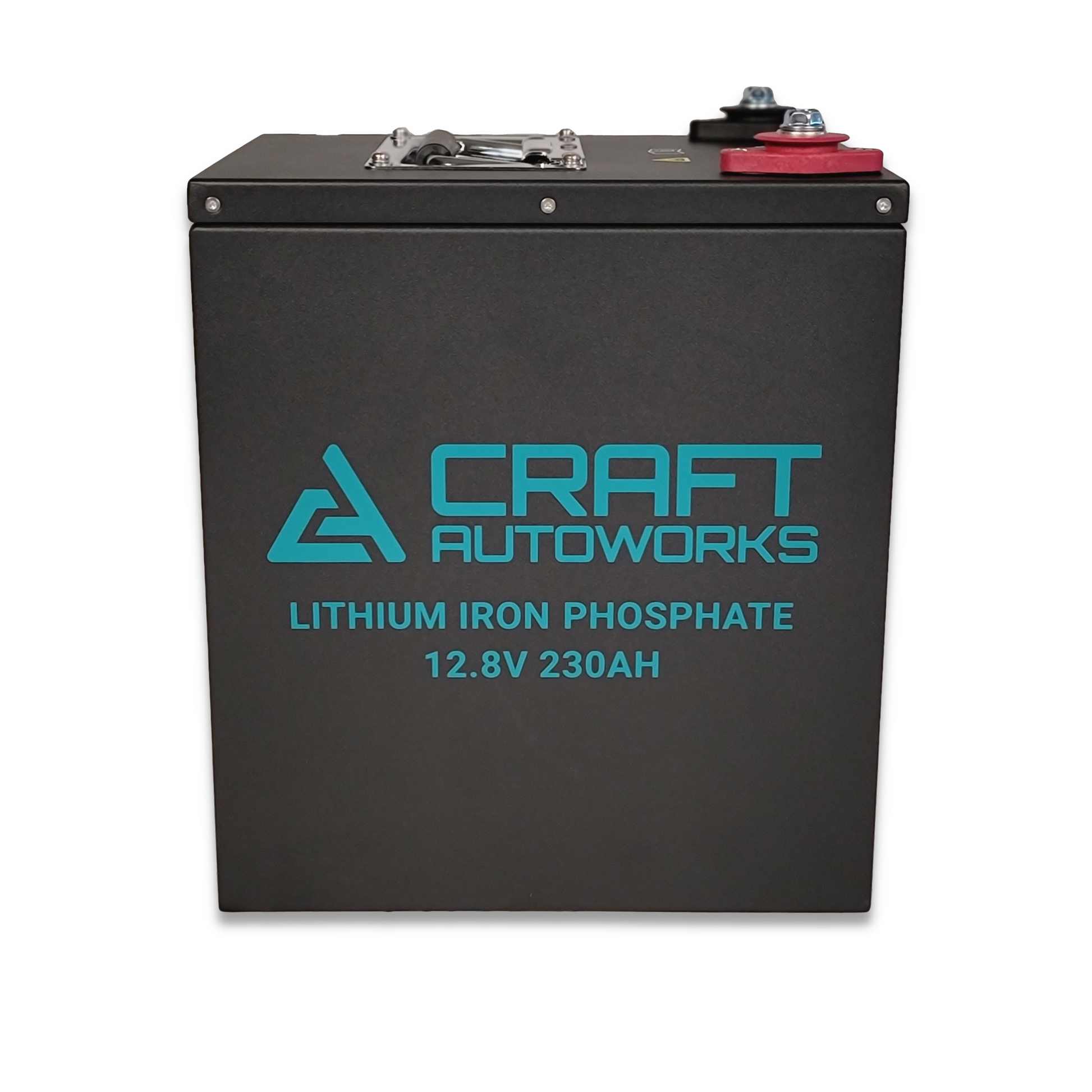

230Ah LiFePO4 Battery

Designed by professionals, the Craft Autoworks LiFePO4 Battery is the first lithium battery engineered specifically for van and overland conversions. Compact, powerful, and packed with smart features, this battery is built to handle real-world off-grid use - no special chargers or complicated resets required.

Key Features

• Ultra-Compact Design – 30% smaller than leading competitors, ideal for tight installs

• Manual Wake-Up Function – No lithium wake-up charger needed - just press the button to show voltage and start charging, even when the BMS has shut down

• Integrated Self-Heating System – Allows safe charging in freezing temperatures

• Serviceable Design – Detachable lid gives access to the BMS and battery cells for maintenance

• Advanced Battery Management System (BMS) – Full protection suite including low temp, high temp, over/under-voltage, and short circuit protection

• Auto Cell Balancing – Ensures long-term performance and health

• 8-Year Warranty – Long-term reliability you can count on

Tech Specs – Model CA12100 (100Ah)

• Nominal Voltage: 12.8V

• Recommended Charge Voltage: 14.6V

• Recommended Charge Current: 100A

• Max Charge Current: 150A

• Max Continuous Discharge: 150A

• Peak Discharge (3 sec): 200A

• Low Voltage Disconnect (recommended): 11.2V

• BMS Cut-Off Voltage: ~10.4V

• Reconnect Voltage: >11.5V

• Discharge Temp Range: -4°F to 140°F

• Charge Temp Range: 0°F to 113°F

• Storage Temp Range: 32°F to 95°F

• Max Parallel Units: Up to 10 batteries

• Weight: 50.2 lbs

• Case Dimensions:

• Metric: 250 x 200 x 277 mm (L x W x H)

• Imperial: 9.8 x 7.9 x 10.9 inches

• Terminal Type: M8 bolts

• System Compatibility: 12V systems only (due to internal heating system)

Why it Matters:
Most lithium batteries shut down when over-discharged and need a special "wake-up capable" charger to come back online. Craft Autoworks solves this problem with a simple momentary switch that allows any charger to recognize the battery voltage and begin charging - no more getting stuck off-grid.

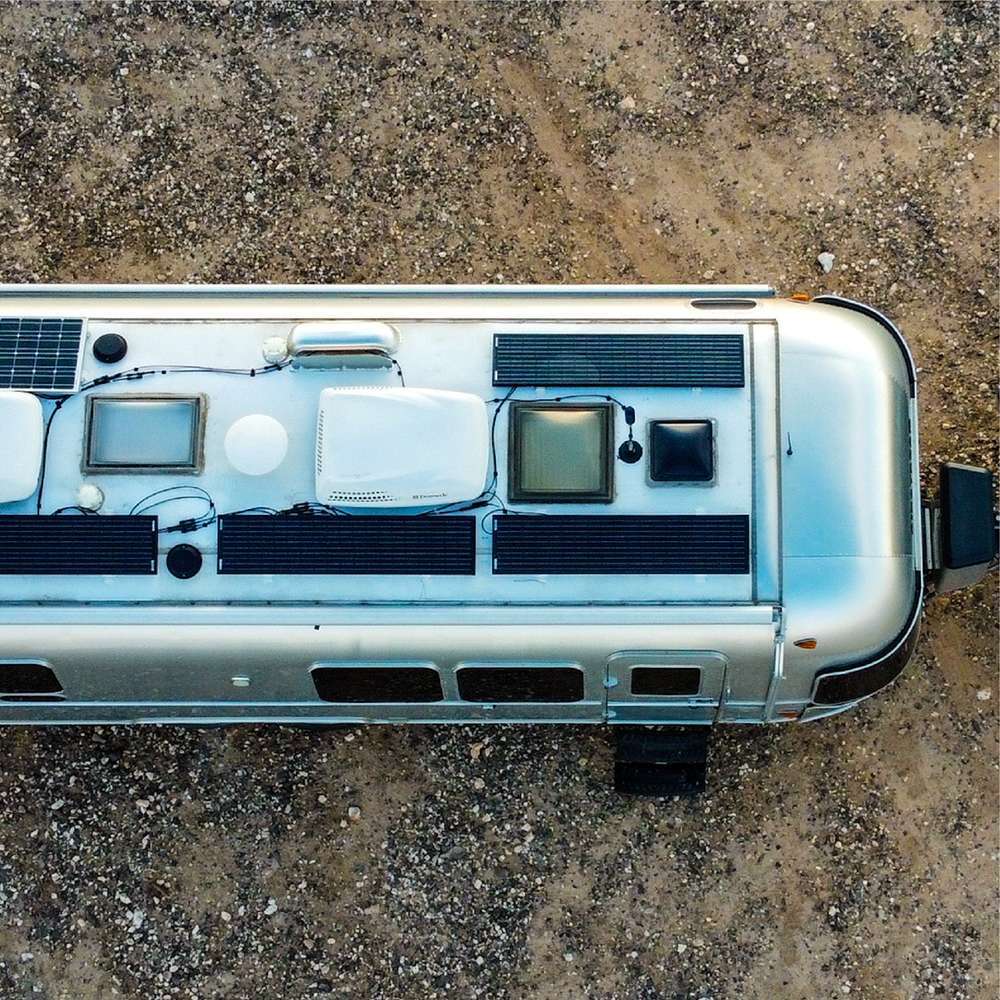

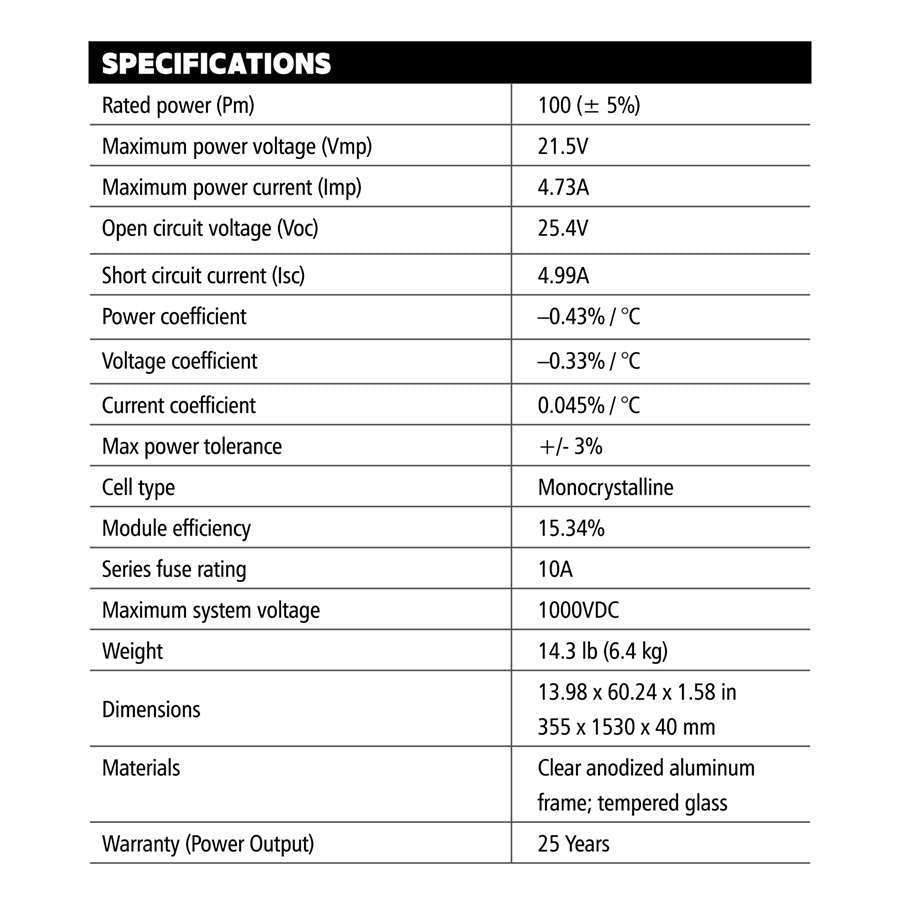

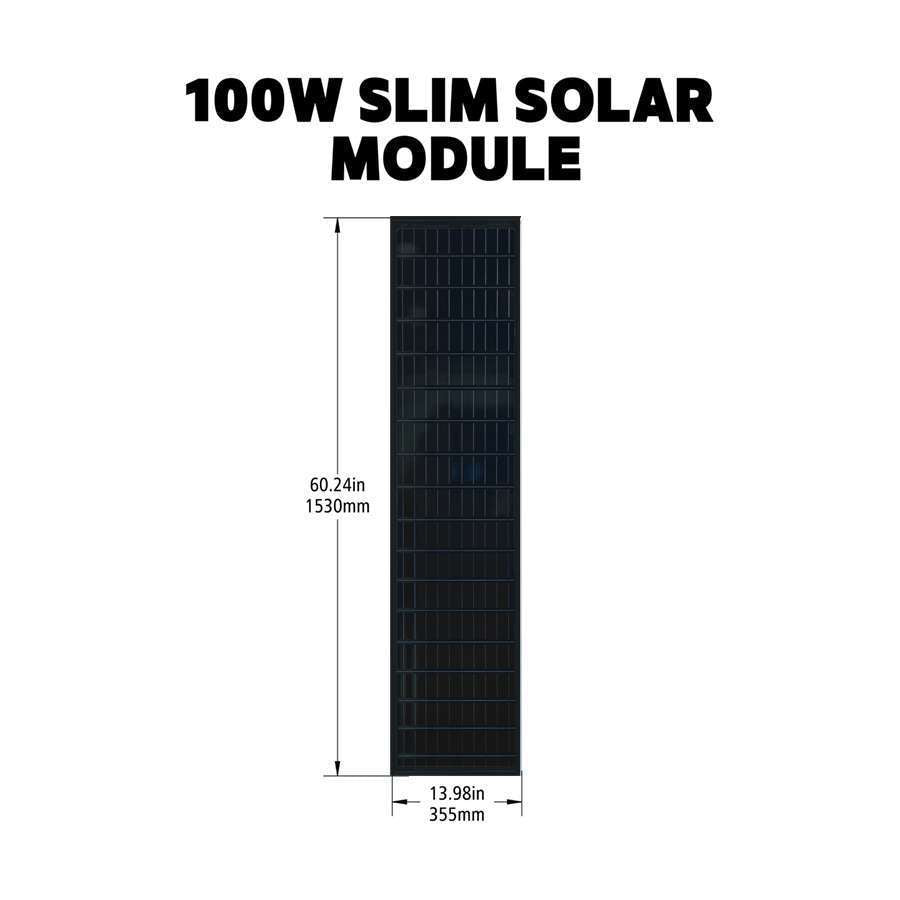

100W SLIM Solar Panel

The SLIM 100W Expansion kit adds another 100 watts of power to your full SLIM 100W Solar Kit. As your need for power grows, so can your RV solar system by adding additional modules to your existing Solar Kit systems. All Go Power! Solar Expansion kits are compatible with one another - 100 watts or higher.

Kit Features

• Rigid, 100 watt, 4.73 amp solar module
• Panel dimensions: 13.98 x 60.24 x 1.58 in
• 25-year power output panel warranty
  Solar cell typeMonocrystalline



20' 12AWG Bare Wire

• PV Connector: Hard plastic connectors at each end,female and male connectors.
•  Black wire sunlight resistant cable extends and locks built-in cables.
•  Durable: UV resistant and waterproof, TUV tested cable.
•  Compliance: TUV logo print per feet indicates that the cable meets TUV standards for PV solar application
• User-friendly: Make more space between your solar panels and between your solar panel and charge controller.
• Application Solar On/Off-Grid System

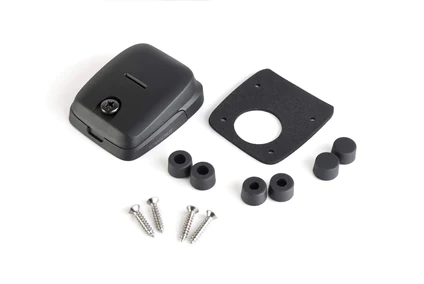

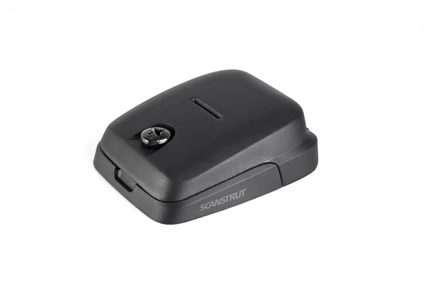

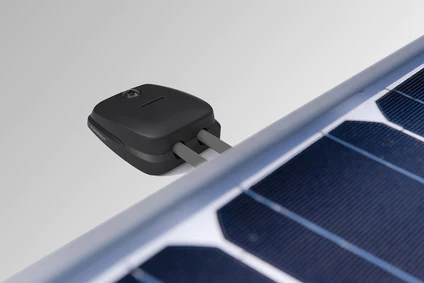

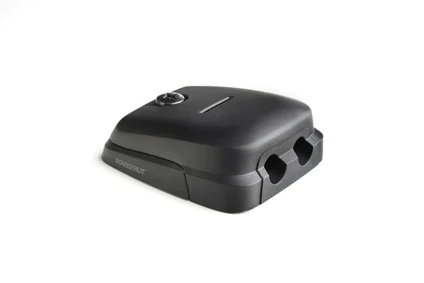

Cable Entry Seal

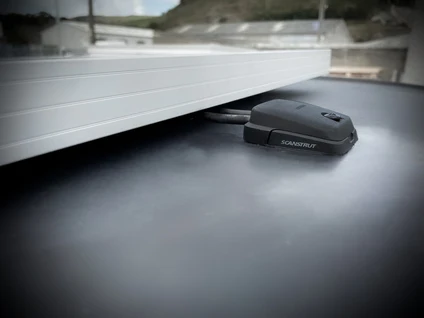

The DS-HD6-BLK Double Horizontal Cable Seal by Scanstrut makes routing solar panel cables on any roof penetration a clean, straightforward experience. Perfect for routing two solar panel cables externally to internally on the roof of camper vans, motor homes, or boats. Install 2 cables: 5mm (0.19in) and 6mm (0.23in) in any combination. This is a smaller version of the DS-HD10-BLK.

PRODUCT VIDEO

A compact footprint - just 54mm (W) 63mm (L) 24mm (h) - allows for installing this cable seal as close to the solar panel as possible. Captive nuts make for easy assembly and also allow for reliable repeat installations. Includes 316 stainless steel fixings and a waterproof 3M gasket.

Product highlights:

• Designed for solar panel installations
• Easy-fit cable routing that cuts down your installation time through wood, metal, and GRP
• IP68 watertight seal
• Made with UV-stable and impact-resistant materials
• Low-profile, impact-resistant construction
• No messy sealant on bungs
