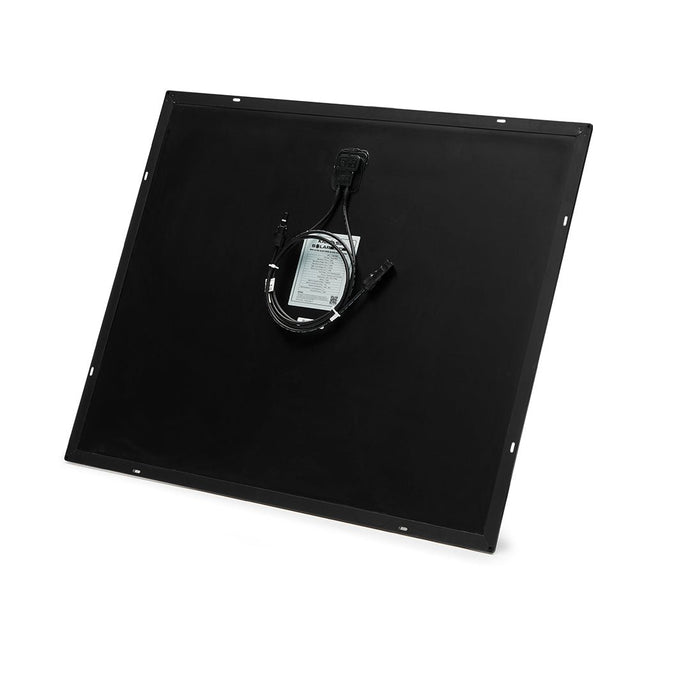

KickAss 12V 80W Ultra Slim Fixed Glass Solar Panel

KickAss 12V 80W Ultra Slim Fixed Glass Solar Panel

Regular price $89.95 USD
Regular price Sale price $89.95 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

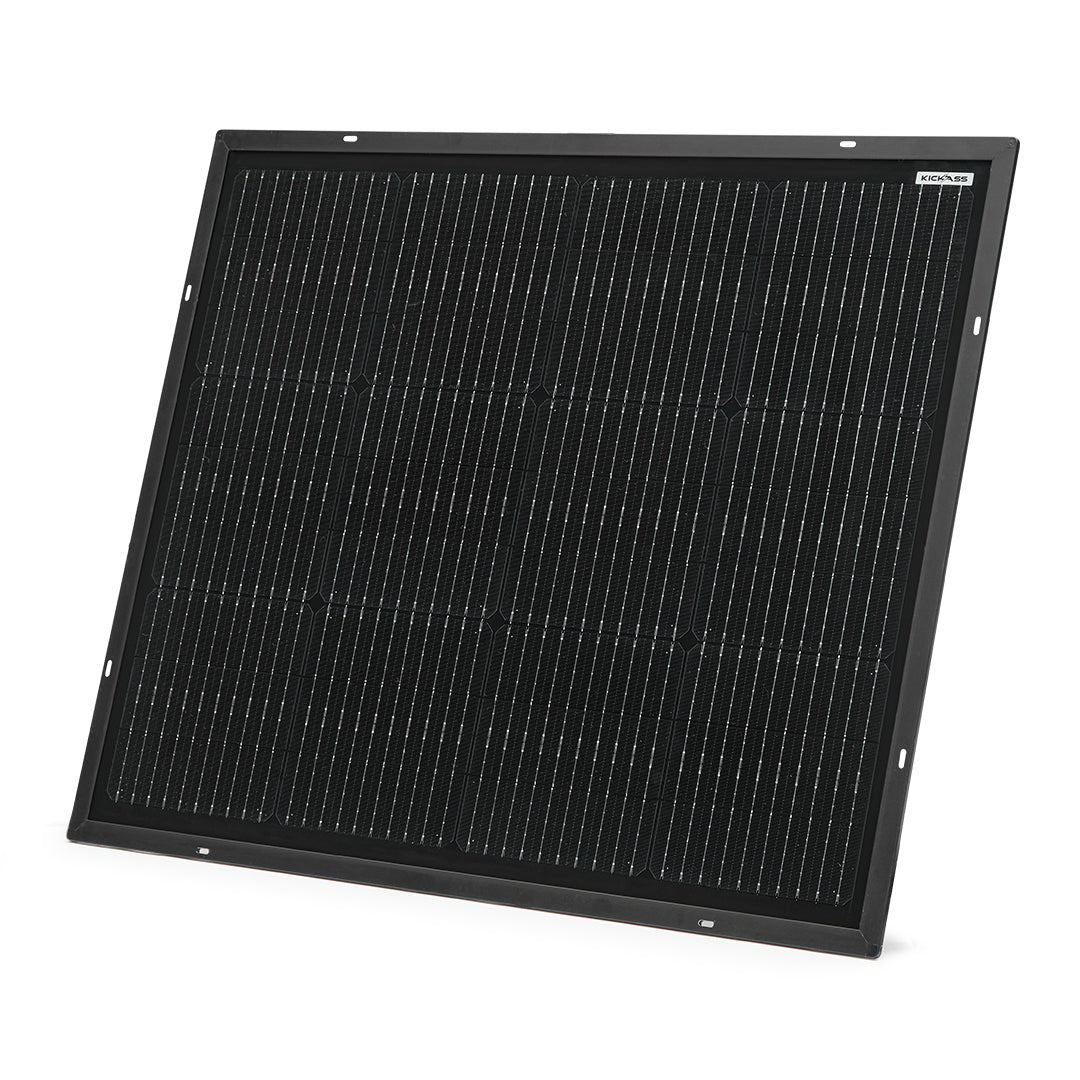

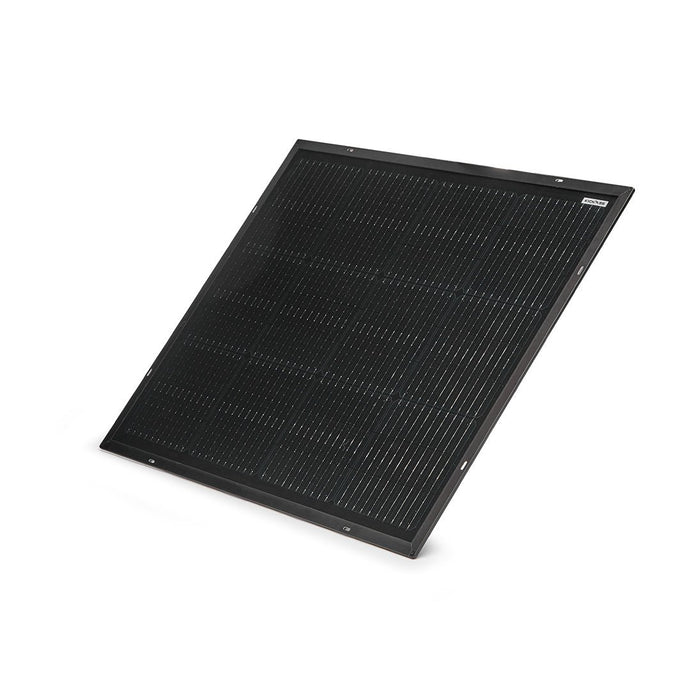

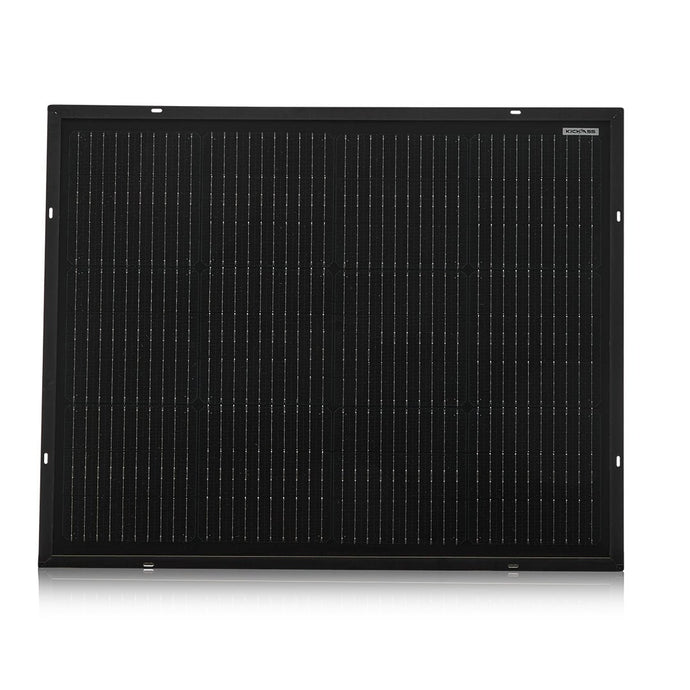

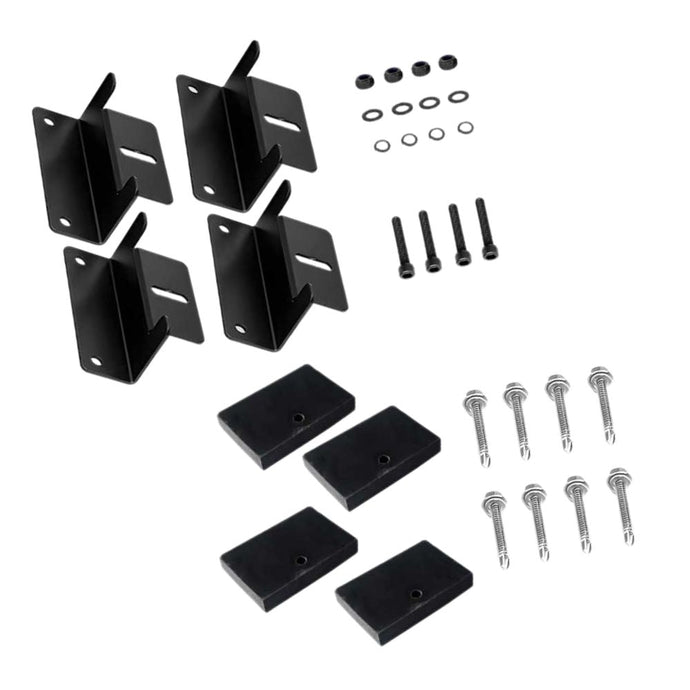

The KickAss 80W Ultra Slim Fixed Glass Solar Panel weighs just 3.6kg – perfect for your 4WD, caravan or boat. Built with A-grade monocrystalline PERC cells, it performs even in low light. The 2mm tempered glass and slim aluminium frame reduce wind resistance. Includes mounting gear and a 3-year warranty.

  • Ultra-Thin Design
  • Lightweight Frame
  • 2mm Thick Full Tempered Glass
  • Series Configuration
  • Bypass Diode

    • Lightweight – only 3.6kg
    • Ultra thin design
    • Monocrystalline PERC cells
    • Multi Busbar Technology
    • Bypass Diode
    • Full Tempered Glass Protection
    • Aluminium Alloy Frame
    • Series Configuration
    • 3 year warranty

    Super Lightweight

    Weighing just 3.6kg, this solar panel is incredibly light, and won’t add extra weight to your vehicle or impact your fuel efficiency.

    Ultra thin design

    This ultra thin 80W solar panel is a sleek, durable solution or those seeking efficient solar power. It’s perfect for compact spaces, and delivers reliable energy in a lightweight design. Perfect for installing on the roof of your 4WD, trailer or caravan

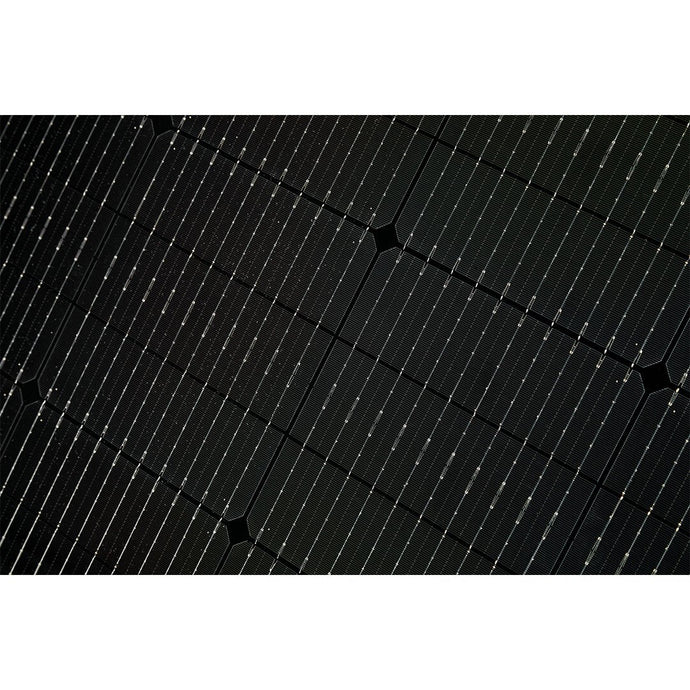

    Monocrystalline PERC cells

    These solar panels combine our KickAss ultra-efficient A-grade monocrystalline solar cells with additional PERC technology. PERC is an innovation which adds an extra layer onto the back of the solar cell. This layer reflects unused light back into the solar cell, which improves efficiency, reduces loss, and puts more energy into your battery

    Multi Busbar Technology

    These ultra thin panels are constructed using multiple busbars, meaning that the electrons generated by sunlight have shorter distances to travel before being collected. This reduces resistance and power losses, resulting in higher overall efficiency. If a solar cell is partially damaged, then the multiple busbar technology also means that energy can still be collected by additional busbars, making the overall system extremely durable and resilient.

    Bypass Diode

    The bypass diode ensures the panels will continue to produce power even when partially shaded. This makes them ideal for rooftop installations, where sunlight conditions may vary.

    2mm Thick Full Tempered Glass

    The panel features a 2mm protective layer of full tempered glass. This protective layer allows more sunlight in, and also enhances their strength and durability. The perfect balance of durability, efficiency, and streamlined convenience.

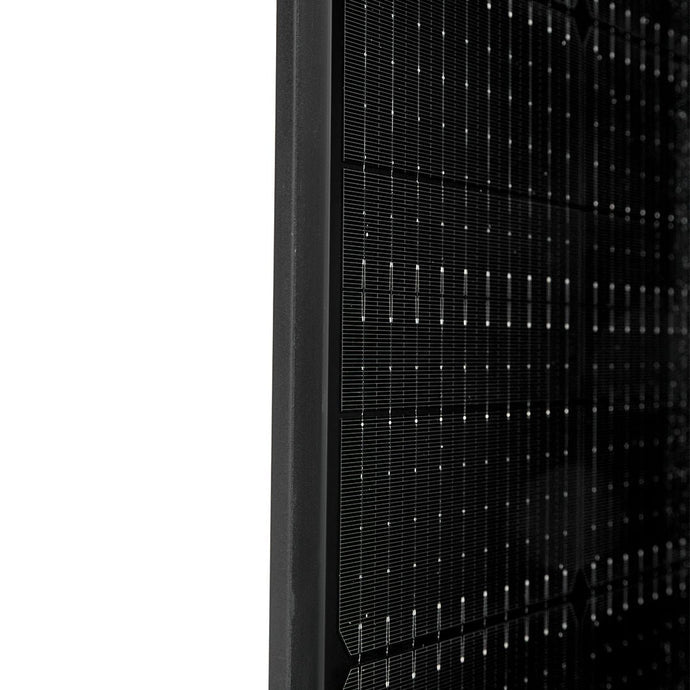

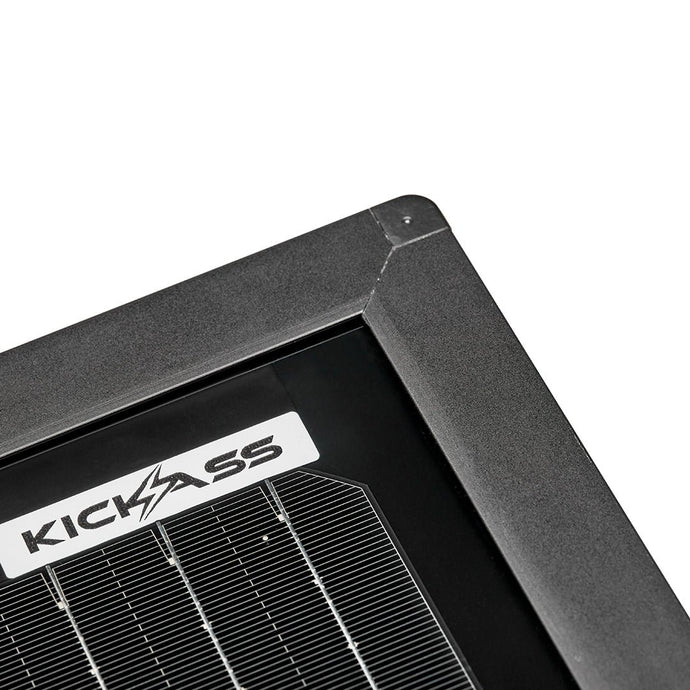

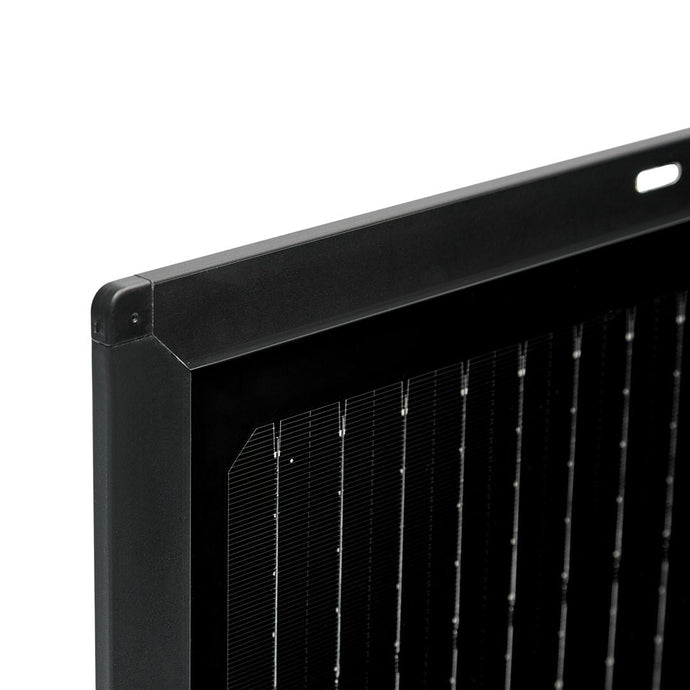

    Lightweight Aluminium Alloy Frame

    The aluminium frame is less than  6mm thick, minimising wind resistance and helping to boost your vehicle’s fuel efficiency. Plus, it keeps your vehicle's overall height low – perfect for streamlined travel.

    Series Configuration

    If you want even more power, link multiple panels in series to boost your overall output. The panels can handle up to 1500V of direct current – perfect if you want to run the KickAss Quickfire BBQ and Induction Cooktop.


    3 year warranty

    We’re so confident in the performance of this product that it comes with a 3-year warranty guarantee – so your investment is protected

    Cell Type Monocrystalline PERC
    Max Power (Pmax) 80W
    Open Circuit Voltage (Voc) 25.07V
    Short Circuit Current (Isc) 4.35A
    Front Glass 2mm Tempered Glass
    Frame Anodised Aluminium Alloy
    Dimensions 635 x 795 x 5.9mm
    Weight 3.6kg
    Maximum System Voltage 500VDC
    Maximum Series Fuse Rating 10A
    Operation Temperature -40°C – 85°C
    Nominal Operation Cell Temperature 42
